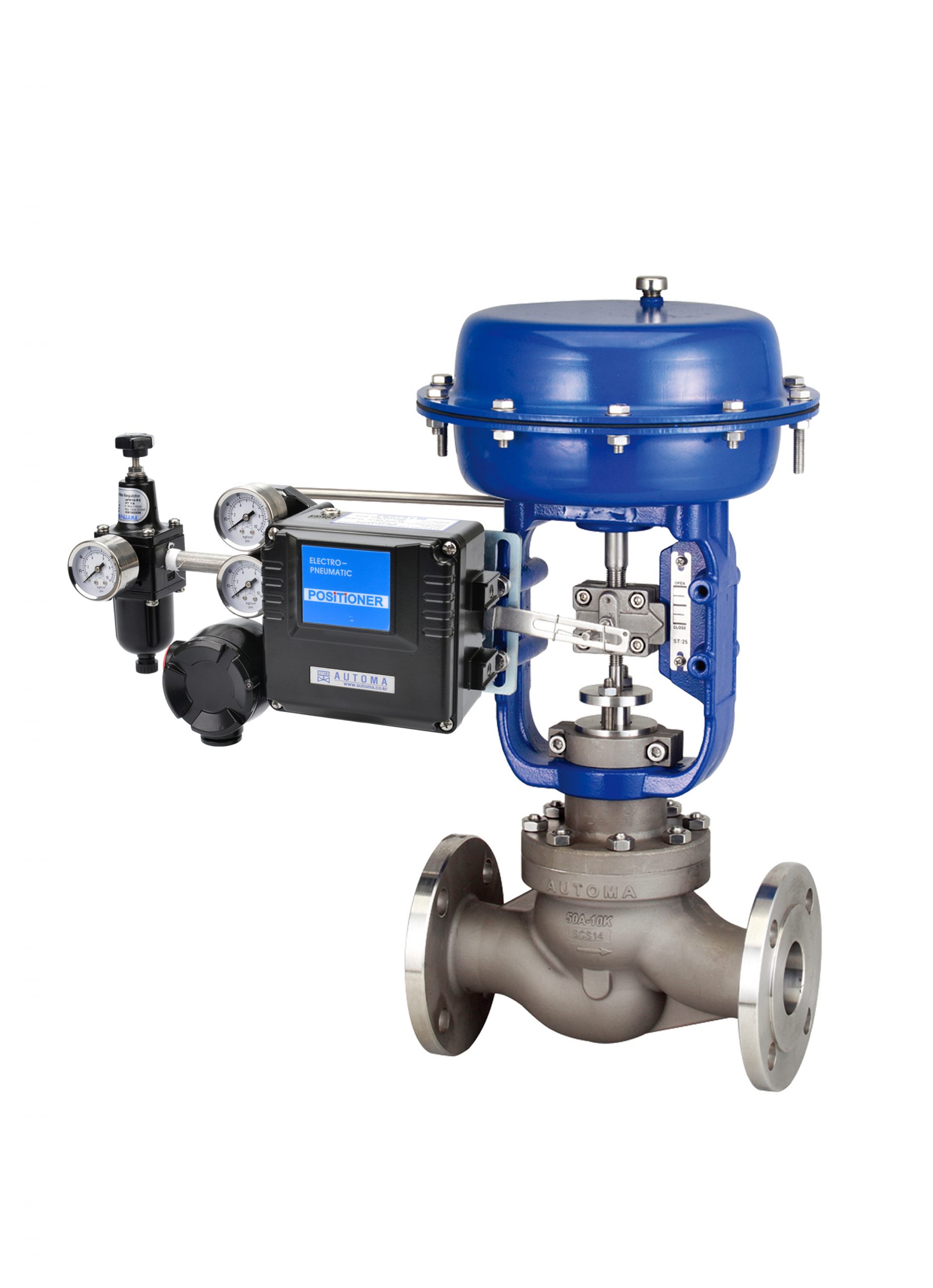

Globe Control Valve
Application Standards
- Fluids : water, Steam, Gas, Oil, Chemical Process
- Construction : Single Port & Cage, Bolted Bonnet
- End Connection : RF, BW, SW
- Design : API 602 / 598, FCI 70-2/62-1, ISA S75.01/RP 59.2
ANSI B 16.10 / 16.25 /16.34/ 16.47 / 16.5 - Seat Leakage : Class IV, V, VI
SPECIFICATION
| ANSI CL 150 LBS(JIS 10K) | |
| Specification | |
| Valve Size | 15A(1/2″) ~ 350A(14″) |
| Actuator Model | AP220 ~ AP470 |
| Actuator Type | Pneumatic Multi Spring Diaphragm / Cylinder – Linear Action (with Dry Air) |
| Operating Pressure | 3 ~ 5kg/㎠ |
| Fluid Temperature | -100℃ ~ 560℃ |
| Rating | ANSI 150#(JIS 10K) |
| Body | Body(A216 WCB, A351 CF8, 8M) / Trim(A182 F304, 316) / Packing(Graphite, viton) |
| Accessory | Solenoid Valve, Air filter Regulator, E/P Positioner |
