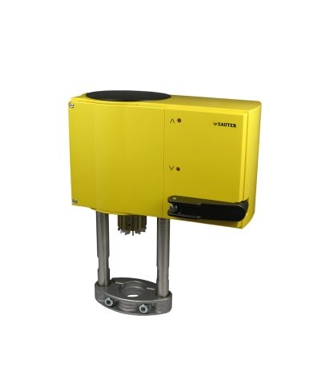

AVF 234S

SPECIFICATION

Features

  • Activation of 2-way and 3-way valves of the VQD/BQD, VQE/BQE, VUG/BUG, VUP, VUS/BUS and V6R/B6R series.
  • For controllers with switching (2- and 3-point) and continuous output (0…10 V, 4…20 mA)
  • Spring return moves to end position in the event of a power failure/interruption or when a limit controller is activated
  • Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic, force-dependent cut-off
  • Simple assembly with valve; spindle is automatically connected after control voltage is applied (patented system)
  • Automatic detection of applied control signal (constant or switched); indicated by two LEDs
  • Coding switches for selecting characteristic and running time
  • Type of characteristic (linear/quadratic/equal-percentage) can be set on the actuator
  • Automatic adaptation to the stroke of the valve (min. valve stroke 8 mm, max. valve stroke 49 mm). The measured stroke is saved and is not lost even in the event of a power failure
  • Direction of operation can be selected via screw terminals when making the electrical connection
  • Crank handle for external manual adjustment with motor cut-off and as trigger for a re-initialisation
  • Numerous adaptors enable the unit to be fitted onto non-SAUTER valves
  • Power supply 230 V with module or direct connection for 24 V~ or 24 V=; continuous activation also admissible with 230 V
  • Maintenance-free gear unit made of sintered steel; gearbox base-plate made of steel
  • Spring pack and mounting column made of stainless steel; mounting bracket made of cast light alloy for valve fitting
  • Electrical connections (max. 2.5 mm²) with screw terminals
  • Three pre-scored cable inlets for M20 × 1.5 (2×) and M16 × 1.5
  • Fitting vertically upright to horizontal, not suspended
