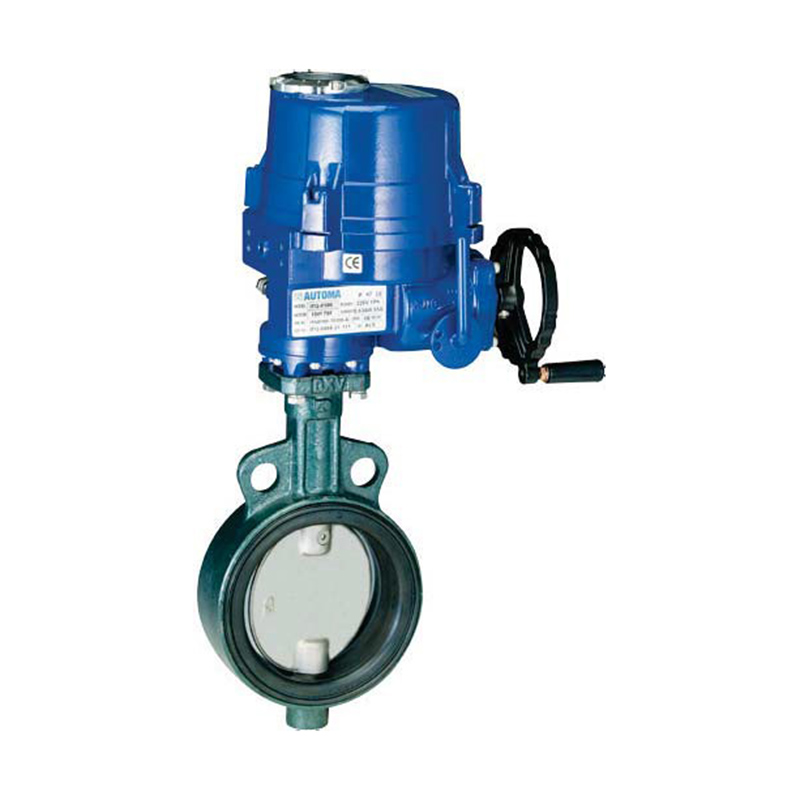

Butterfly Valve (Electric type)
Application Standards
- Fluids : water, Gas, Oil, Chemical process
- Construction : Concetric, Ant Static DEVIC
- End Connection : FF, Wafer, Lug
- Design : API 602 / 598 ; ANSI B 16,34 16.47 / 16.5
- Seat Leakage : Class V, VI
SPECIFICATION
| Valve Size | 40A ~ 1000A | |
| Actuator Model | ATM0040 ~ ATM3000 | |
| Actuator Type | Electric | |
| Electrical | AC110V 220V, AC380V 440V | |
| Rotating Angle | 90˚ ±5˚ | |
| Operating Type | ON/OFF, MODULATING (Except for ATM0040) | |
| Fluid Temp | -20℃ ~ ±70℃ | |
| Rating | ANSI150# | |
| Body Material | Body(A216 WCB, A351 CF8) / Disc(A351 CF8, CF8M) / Seat(EPDM, VITON) | |
