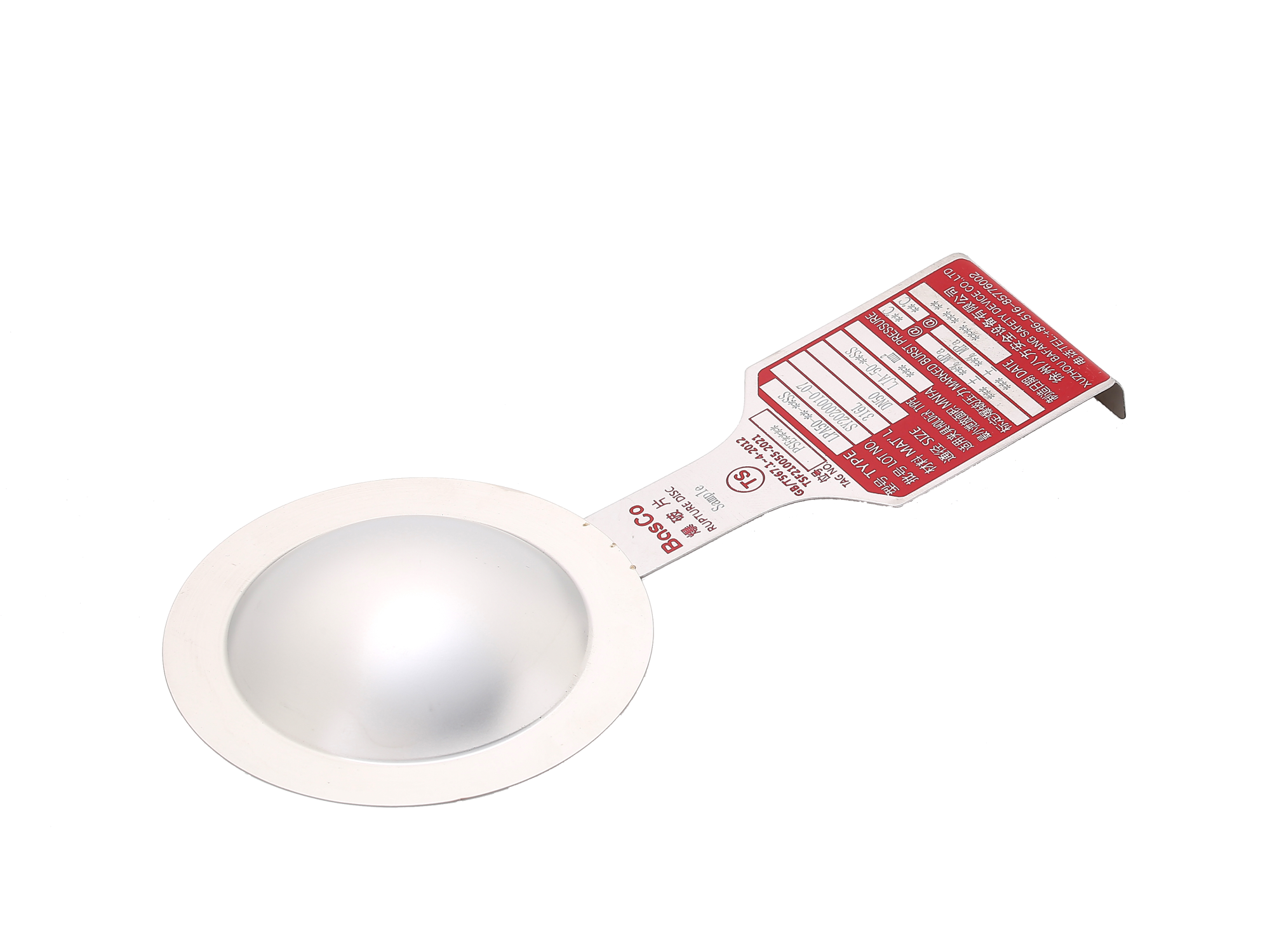

FORWARD ACTING CONVENTIONAL RUPTURE DISC(LP SERIES)
Solid metal disc with fragment resistant design
Size:3mm-600mm
Pressure:0.1-5000barg
Operation ratio: 70%
Vacuum Support Required:YES
Suitable for gas or liquid service
SPECIFICATION
Technical features:
• Perfectly arched bursting discs
• Bursting Pressure: 0.1-5000 barg
• Operating ratios up to 70% of the low end of burst tolerance
• Some vacuum applications require a vacuum bracket
• Size 3 mm ~ 600 mm
• Debris from blasting
• Suitable for liquid, gas, or two-phase applications
• 3d disc label, including all parameters of the disc
Options
LP-V The back pressure bracket is mounted on the inlet side of the bursting disc and allows the bursting disc to support full vacuum.
LP-L Fluoroplastic lining/coating provides protection against corrosive as required.
LP-R The support ring protects precision materials and provides stability when backpressure brackets are not provided.
