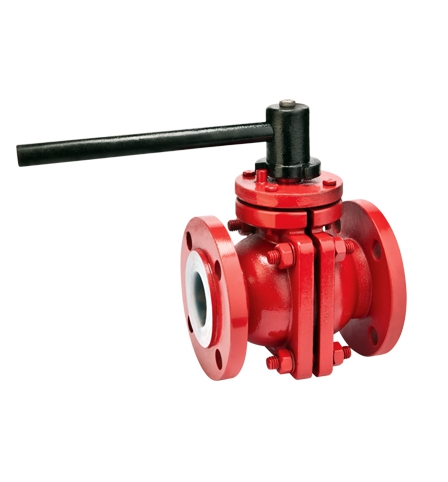

LINED BALL VALVE
SPECIFICATION
PRODUCT DETAILS
Application : Isolation
Features / Benefit : 100 % dielectrically spark tested suitable for vacuum service
low maintenance cost
absolute resistance to atmosphere & wear
Ansi Class / Rating : 150#
Design Standard : BS EN ISO 17292
Testing Standard : API 598
F to F Standard : ASME B16.10
End Connection Standard : ASME B16.5
Size : 15 mm to 200 mm
Materials : Body : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Ball , Stem : WCB, CF8, CF8M,
Hast Alloy, Super Duplex, Alloy 20 , LCB etc
Linning : PFA , FEP
Ends : Flanged End
Operation : Mannual, Pneumatic, Electric
