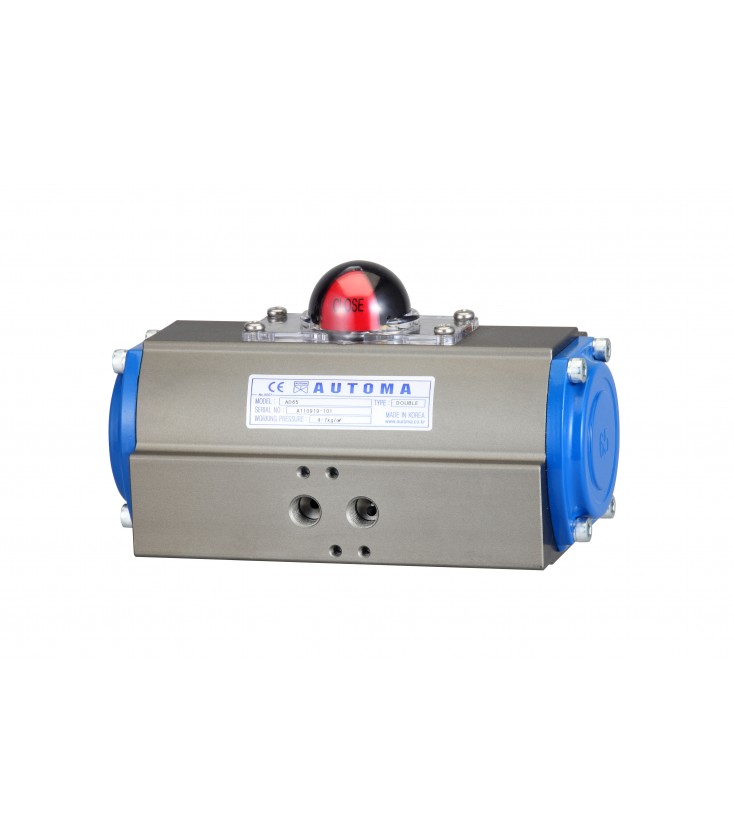

Pneumatic Actuator (Double)
Features
- Scotch – Yoke type
- No metal to metal touch
- ISO 5211,DIN 3337
- Anodized surface & double coated interior
SPECIFICATION
| Item | AD32 | AD40 | AD50 | AD65 | AD80 | AD100 | AD125 | AD140 | AD160 | AD185 | AD200 | AD250 | AD300 |
| Operating Type | Rack & Pinion | Scotch – Yoke | |||||||||||
| Operating Media | Compressed Dry Air | ||||||||||||
| Operating Pressure | 4 ~ 7kg/cm2 | ||||||||||||
| Rotating Angle | 90° +5°/-10° | ||||||||||||
| Operating Temperature | -20°C ~ 80°C(Option : -40°C ~ 200°C) | ||||||||||||
| Weight(kg) | 0.3 | 0.5 | 1.4 | 2.3 | 3.9 | 6.7 | 11.3 | 16.4 | 23.7 | 38.1 | 45.5 | 65.8 | 78 |
