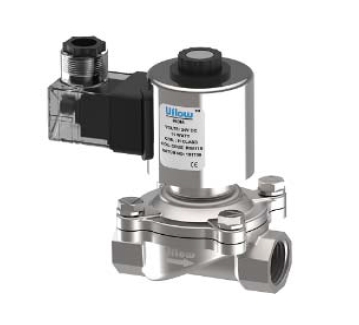

SEMI LIFT DIAPHRAGM OPERATED SOLENOID VALVE (NC)
MODEL : MCN
SPECIFICATION
CONNECTION : BSP
BODY MATERIAL : SS304
PRESSURE RANGE : 0 TO 7 BAR
DIAPHRAGM & SEAL : NITRILE
MEDIA TEMPERATURE : (-)30°C TO +90°C
VOLTAGE : 230 VAC / 24 VDC
MEDIA : AIR / WATER / GAS / CHEMICAL
FEATURES : METALLIC ROUND COIL WITH LED DIN CONNECTOR
OPTION : IP67 FLAME PROOF COIL ( CMRI CERTIFIED ) ( +4,500 )
