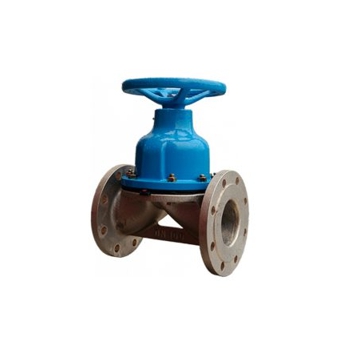

T100 – WEIR TYPE

SPECIFICATION

The main features of the valve:

100% leak proof guaranteed
The valve can be installed in any position
Produced with high EU quality component
Easy maintenance: Three part design allows maintenance replacement of parts without removing the valve body from the pipeline.
Lubrication system
Handwheel: comfortable grip, easy to use for fast operation, saves time and effort.
Stem designed to reduce friction for low operating torque
Diaphragm: provides positive shutoff and isolates all working parts from fluid line.
Full flow and low pressure drop

* Valves manufactured following European Pressure Equipment Directive PED 2014/68/EU.

CONNECTIONS

Face to face according DIN-3202 y BS-5156.
Flanges DIN PN10/PN16 and ASA 125/150.

*Other connections on request

PRESSURES & SIZES

HANDWHEEL

Maximum service pressures recommended:

DN15 (1/2”) – DN150 (6”) à 10 bar
DN200 (8”) – DN250 (10”) à 8 bar
DN300 (12”) – DN350 (14”) à 4 bar

PNEUMATIC (air to close) (AD-V )

Maximum service pressures recommended:

DN15 (1/2”) – DN125 (5”) à 10 bar
DN150 (6”) à 6 bar
DN200 (8”) – DN300 (12”) à 4 bar

* Recommended pressure in the pneumatic: 4 bar

PNEUMATIC (air to close) (AD)

Maximum service pressures recommended:

DN15 (1/2”) – DN125 (5”) à 10 bar
DN150 (6”) à 6 bar
DN200 (8”) – DN300 (12”) à 4 bar

* Recommended pressure in the pneumatic: 4 bar

PNEUMATIC (Double acting) (AD-2 and AD-V2)

Maximum service pressures recommended:

DN15 (1/2”) – DN125 (5”) à 10 bar
DN150 (6”) à 6 bar
DN200 (8”) – DN300 (12”) à 4 bar

* Recommended pressure in the pneumatic: 4 bar

PNEUMATIC (air to open) (AI-V y AI-VR)

Maximum service pressures recommended:

N15 (1/2”) – DN125 (5”) à 10bar
DN150 (6”) à 6bar
DN200 (8”) – DN300 (12”) à 3bar

* Recommended pressure in the pneumatic: 5 bar

MATERIALS

BODY

GG25, GGG40, GGG50, A216 WCB, SS316 (CF8M), CARPENTER20 (CN7M).

* Special alloys on request.

LINING

HARD RUBBER/EBONITE, ABRASSION NATURAL RUBBER, NEOPRENE, BUTYL, NITRILE (NBR), HYPALON, HALAR (ECTFE), RILSAN (POLIAMIDE)

*Other linings available on request

BONNET

GG25

* Other alloys on request.

DIAPHRAGM

Butyl (BU) Blue
Reinforced butyl (BUR)
Natural rubber (BL) White
EPDM (EP)
Hypalon (HY) Green
Neoprene (NE) Red
Nitrile (NI) Yellow
Silicone (SI)
PTFE (TE)
Viton (VI) Orange

*The abbreviations or the identification colour are in the flap of the diaphragm.
*The bonnet diaphragms are always in Natural rubber (BL).

ACTUATORS

Manual, air open actuator, air to close actuator, double acting actuator, electric, gear box

ACCESSORIES

Position indicators, switches, solenoid valves, padlocks, mechanical limit switches

SECTORS

Wastewater treatment plants, Chemical industry, power plants, automotive sector, food & beverage, mining, nuclear plants, metallurgical industry, pulp & paper…industry in general
